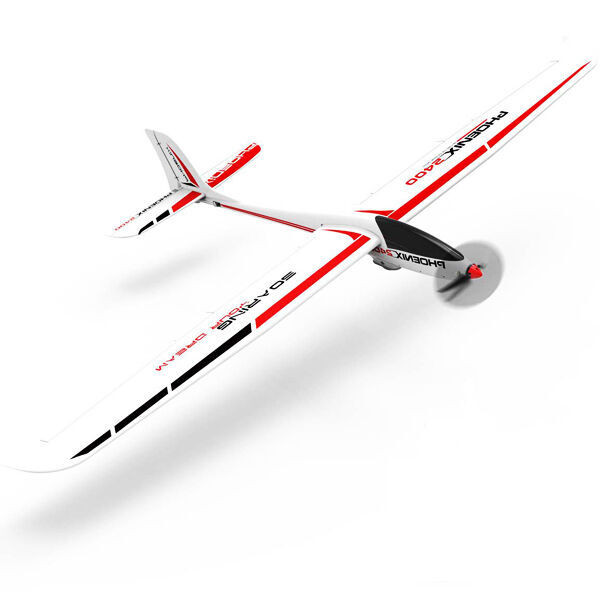

Loading... Please wait...The Phoenix 2400 is the largest glider in the Phoenix range. It comes with an ABS plastic hull and strong EPO foam wings and tail section. An additional canopy with camera mount is included.(camera sold separately) Once you have your camera installed, you can either enjoy FPV flying or just take pictures of your flights.
Assembling the glider is quite easy with no glue required. The wing halves simply snap into place along with a rigid wing spar for added strength. The main wing is 2400 millimeters long and contains ailerons and flaps for better aircraft control. The fuselage has a built in single wheel for easier landing on rougher runways.
The speed controller, brushless outrunner motor and 9g servos are all pre installed. It should only take about 20 minutes for the rest of the build to complete, including adding your own receiver and battery.
Wingspan: 2400mm
Length: 1283mm
Flying weight: 1160g
Motor: 4023-1050kV brushless outrunner
ESC: 40A brushless
Propeller: 10x6 collapsible
Servos: 9g x 6
CoG: 77 +/- 5 mm from the leading edge
Needed to complete
Battery (recommended: 11.1V 2200-5000mAh Li-Po)
Charger
Transmitter & receiver
