High performance 32-bit microprocessor (with a running frequency of up to 96MHz)
DEO (Driving Efficiency Optimization) Technology that greatly improves throttle response driving efficiency and reduces ESC temperature.
Separate programming cable for connecting the ESC to a LED (program box - Sold Separately) that allows users to program the ESC anytime and anywhere.
Normal and Reverse brake modes that can effectively shorten the landing distance for the aircraft.
Search mode can help users find the aircraft by the alarm beeps after the aircraft falls into the complex environment
Multiple protection features such as start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and, throttle signal the loss will effectively prolong the life of the ESC
Specifications:
Model:60A V2
Input Voltage:3-7S
BEC Output:5V @ 7A (Switch-mode)
Continues Current:60A
Peak Current:80A
Dimensions:73x30x12mm (LxWxH)
Weight:68g
Wire Input:14AWG-100mm
Wire Output:14AWG-100mm
Output Connectors:4.0mm Bullets (Female)
Includes:

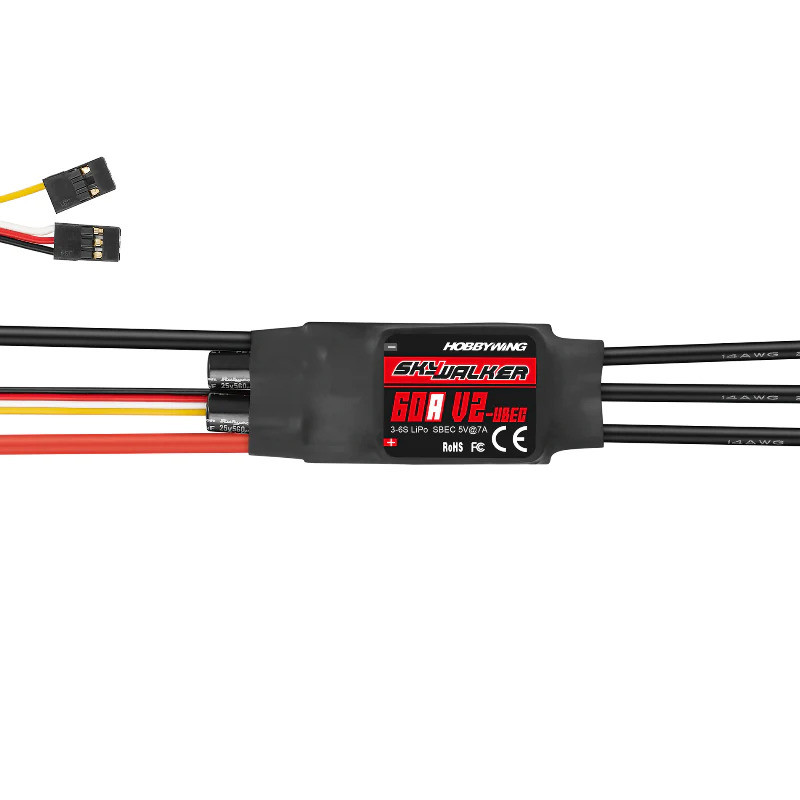

(1) Hobbywing Skywalker 60Amp V2 Brushless ESC
Product Videos
Programming the Hobbywing Skywalker ESC (03:14)
How to program the Hobbywing Skywalker ESC using the throttle on your transmitter. This allows you to change the brake settings, battery type, start mode and more.
This works for the skywalker series of ESC's. To do this you need a receiver bound to the transmitter and connected to the ESC.
It also demonstrates how to calibrate the throttle positions.
For an excellent description of this process please refer to the owner's manual.
