Flywing UH1 3D GPS 10Ch RC Helicopter - Four Blades Green RTF
RRP:
$1,449.95
$1,374.95
(You save $75.00)
SKU:
FW-UH1-GREEN-4BLADES
Condition:
New
Product Description

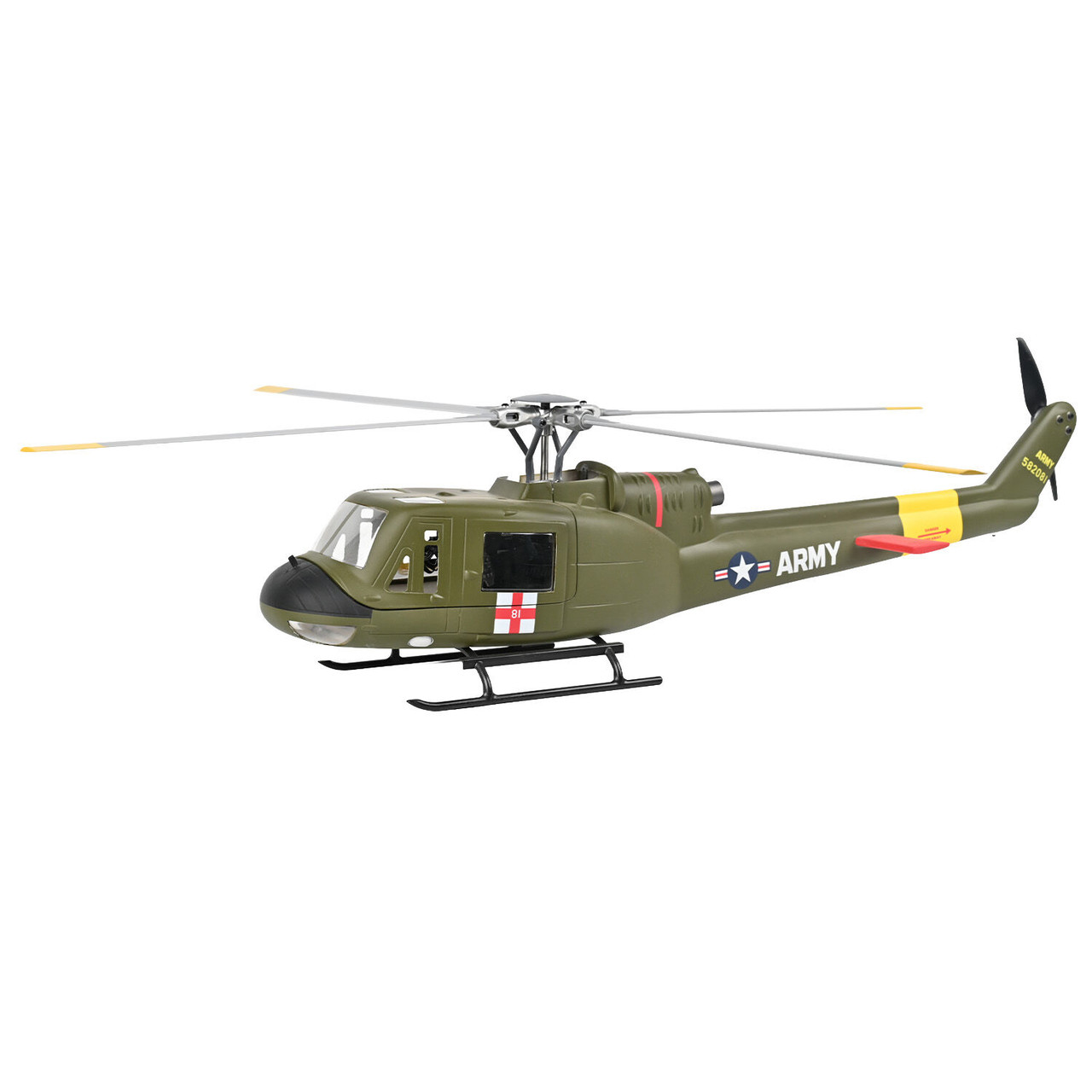

The Flywing UH-1 Iroquois is a GPS-stabilised 10-channel scale radio-controlled helicopter — a scale model of the Bell UH-1 "Huey", finished in military green livery with a four-blade rotor head.
It is fitted with ACE Flight Controller with M10N GPS/GLONASS omnidirectional positioning; no compass calibration required, giving GPS position hold, self-levelling (ATT) mode and full 3D manual flight, plus one-key return-to-home and automatic low-battery and loss-of-signal return. Drive is provided by a 3508 brushless main motor; brushless tail motor main motor and a 60A brushless speed controller. Flight time is around ~18 minutes (4-blade config) on the included 4S 14.8V 5000mAh (74Wh).
- Channels: 10Ch
- Flight controller: ACE Flight Controller with M10N GPS/GLONASS omnidirectional positioning; no compass calibration required
- Main rotor diameter: 810mm
- Length: 750mm (excluding blades)
- Weight (no battery): 836g (excluding battery)
- Battery: 4S 14.8V 5000mAh (74Wh)
- Flight time: ~18 minutes (4-blade config)
Supplied ready-to-fly (RTF).
Key Features
- M10 GPS positioning with 80% performance increase
- 20+ minute ultra-long flight time
- 16V high-power brushless motor system
- Enhanced scale detail compared to V3
- One-key return and low-battery protection
- Automatic flight mode (figure-8 and circle patterns)
- High-performance servo with 4KG torque
- 10-channel transmitter with 1km range
- Sensor damping design for stability
- Scale metal rotor head design
- Plug-in cabin door for easy access
- Transparent cockpit cover
Scale Design Features
Enhanced V4 Details
- Neatly arranged engraved lines
- Scale metal rotor heads
- Transparent cockpit covers
- Highly restored military paint schemes
- 3D printed decorative parts
- Plug-in cabin door design for easy battery access
Military Authenticity
- Faithful recreation of legendary UH-1 "Huey"
- Military number designation accuracy
- Army, Air Force, and Navy service representation
- Realistic turbulent era aesthetics
Flight Modes & Operations
M10 GPS Positioning Mode
- Similar operation to traditional drones
- M10 GPS positioning assistance
- Barometric altitude assistance
- Fixed location and height hovering
- Push joystick to fly, release to stop
- Easy operation without panic
Automatic Flight Mode
- Horizontal flight path programming
- Figure-8 shaped flight patterns
- Circular flight patterns
- Rudder control for nose direction during auto flight
- Spin flight capabilities
Technical Specifications
| Specification | Value |
|---|---|
| Model | UH-1 V4 |
| Type | Smart RC Helicopter |
| Motor System | 16V Brushless Motor Configuration |
| Main Motor | 16V Brushless Motor |
| Tail Motor | High-Speed Brushless Motor |
| ESC | Optimised for Motor Characteristics |
| Flight Time | 20+ minutes |
| Remote Control Range | Approximately 1 kilometre |
| Transmitter Channels | 10 Channel |
| GPS Module | M10 GPS Positioning |
| Servo Torque | 4KG·cm |
| Servo Response | 0.12sec/60° |
| Rotor Head Material | Scale Metal |
| Cockpit | Transparent Cover |
Technical Details
Power System
- 16V brushless motor configuration
- Stronger power compared to traditional 12V systems
- ESC optimised for motor characteristics
- Greatly improved flight efficiency
- High-speed brushless tail motor
- Specially designed high-efficiency tail rotor
Control System
- High-performance servo with coreless motor
- 4KG·cm torque capacity
- 0.12sec/60° high-speed response
- Elliptical output shaft design
- Metal gear material
- No servo arm debugging required
GPS & Navigation
- All-new M10 GPS positioning module
- Omnidirectional positioning technology
- Faster satellite search speed
- Better signal quality
- 80% performance increase vs previous generation
- More stable hovering capabilities
- More responsive flight control
- More accurate return-to-home
Sensor & Damping
- Tailored EPDM shock-absorbing material
- Addresses helicopter vibration characteristics
- IMU attitude sensor suspension in flight control
- Filters most mechanical vibrations
- Advanced filtering algorithms
- Improved aircraft stability
Remote Control
- 10-channel transmitter
- Approximately 1km control distance
- Reasonable switch positioning
- Clear function layout
- Dual joystick return centre design
- Release-to-brake and hover capability
- SBUS protocol support for 9+ channels
- Third-party remote control compatibility
Safety & Protection Features
- One-key return function
- Low-battery automatic return
- Automatic landing at takeoff point
- Battery voltage monitoring
- Sufficient residual voltage protection for safe return
- Multiple security protections
- Failsafe return system
Software Features
- Intuitive and easy-to-use interface
- Helicopter power adjustment
- Reaction speed customisation
- Compass calibration
- Flight style personalisation
- Tutorial video integration
- Swash plate servo adjustment
- Forward/reverse servo configuration
- Neutral point fine adjustment
- Professional throttle control
Historical Significance
The UH-1 "Huey" helicopter holds a legendary place in military aviation history. Originally designated as HU-1 in 1956 and later changed to UH-1 in 1963, this general-purpose helicopter earned the nickname "American Daddy" and became commonly known as the "Iroquois." Primarily equipped by the Army, as well as the Air Force and Navy, the UH-1 served with distinction in numerous conflicts and operations.
This V4 recreation captures the essence of that turbulent era with meticulous attention to historical accuracy while incorporating modern RC technology for an authentic yet manageable flying experience.
