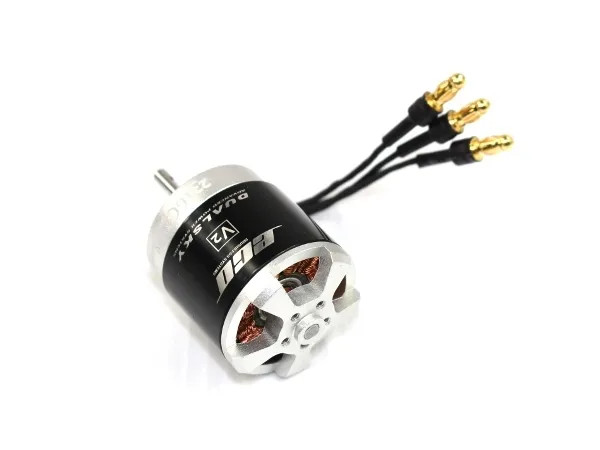

Dualsky ECO 2316C 980KV Brushless Motor
$69.95
SKU:
DSXM51654
Sorry but this item is currently unavailable.
Please check back at a later stage.
Product Description
The Dualsky ECO 2316C 980KV Brushless Motor is designed for 600-1400g airplanes.
Features
- Brushless
- Designed for airplanes 600-1400g
Product Information
The Dualsky ECO 2316C 980KV Brushless Motor is designed for 600-1400g airplanes.
Specs
- RPM/V (KV)
- 980
- Turns
- 8.5
- Weight
- 72g
- Dimensions
- 28.8 x 32.9 mm
- Diameter of Shaft
- 3.715
- No of Cells
- 3 - 4
- Slots, Poles
- 12N14P
- Idle Current (Io) @ 10V
- 0.7
- Max Efficiency Current
- 15
- Max Torque [N*M]
- 0.29
- Max Burst Current (15S) [A]
- 25
- Max Power (W) [15S]
- 300
- Mounting Holes Pitch
- 16/16
- Recommended ESC
- XC-45-LITE or XC3012BA
- Propeller
- 3S: 10x5E, 11x7E
4S: 8x6E, 9x6E - Class
- For 600-1400g airplanes
