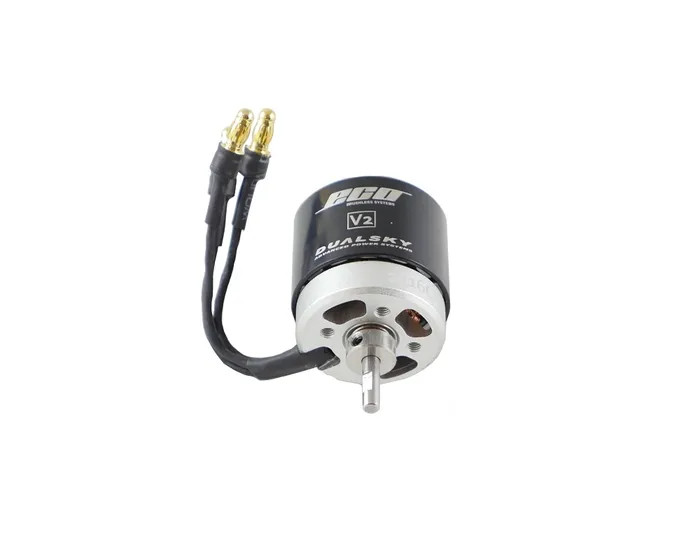

Dualsky ECO 2316C 1500kv Brushless Motor
$69.95
SKU:
DSXM51652
Product Description
Product Information
Dualsky Eco 2316C, 1500kv Brushless Motor
Specs
- KV
- 1500
- Turns
- 5.5
- Weight
- 72g
- Dimensions
- 28.8 x 32.9mm
- Slots & Poles
- 12N14P
- Ri (mOhm)
- 39
- Io @ 10V (A)
- 1.4
- No. of Cells (LiPo)
- 2..3
- Max. Efficiency Current [A]
- 20
- Max Burst Current (15S) [A]
- 33
- Max. Power (15S) [W]
- 264
- Max Torque [N*M]
- 0.25
- Shaft Diameter (mm)
- 3.175
- Mounting Holes Pitch
- 16/16
- Input Connectors
- GC3.5
- Recommended ESC
- XC-45-LITE or XC3012BA
- Propeller
- 2S: 11x5.5E, 12x6E
3S: 7x5E, 8x6E - Class
- 450 Class, 600-1100g
