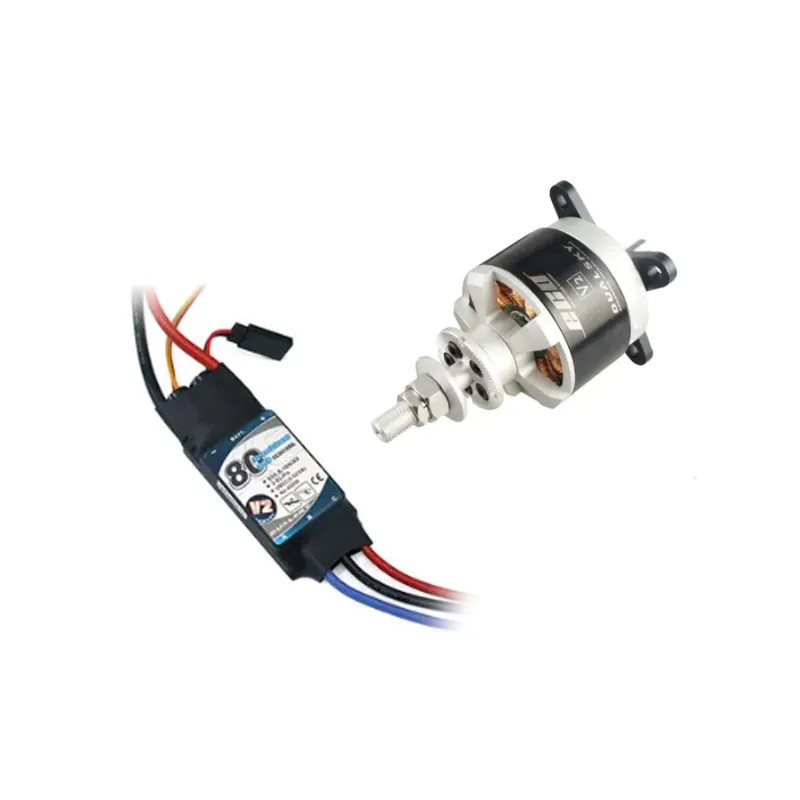

Dualsky 70E Tuning Combo with ECO 4120C V2 500kv Motor and 80A ESC
$259.95
SKU:
DSTC.6A.70E
Product Description
This Dualsky 70E Tuning Combo features the ECO 4120 V2 500kv motor and 80A ESC. It is suitable for the Sebart 50E series.
Specs
Motor Specs
- KV
- 500
- Turns
- 8
- Weight
- 280g
- Size (D x L)
- 49.5 x 45.2
- Slots & Poles
- 12N14P
- Ri (mOhm)
- 25
- Io @ 10V (A)
- 1.1
- No. of Cells (LiPo)
- 5S, 6S
- Max. Efficiency Current (15S) [A]
- 36
- Max. Burst Current (15S) [A]
- 60
- Max. Power (15S) [W]
- 1440
- Max. Torque
- 1.38
- Shaft Diameter
- 6
- Mounting Holes Pitch
- 30/30
- Input Connectors
- GC4.0
- Recommended ESC
- XC-65-LITE or XC6018BA
- Propeller
- 5S: 16x8E, 15x8E or 6S: 14x7E, 15x8E
- Class
- .46-.55 2-stroke
ESC Specs
- Dimensions (L x W x D)
- 75 x 30 x 14 mm
- Weight
- 71 g
- Number of Cells
- NiXX 6-18, 7.2-21.6V
LiPo 2-6, 7.4-22.2V - Resistance (Ri) mOhm
- 0.0016
- Max Cont. Current
- 80 A
- Max Cont. Output
- 1680 W
- Max. Burst Current
- 100 A
- Max Burst Output
- 2040 W
- BEC / Dissipative Power
- 5.5V/3A (Switching)
- Programmable
- Throttle + ProgCARD + USB LINK
- Input Wires
- 150 mm 12AWG, DC3
- Output Wires
- 90 mm, 14AWG, DB4
- Signal Wire
- 300 mm JR
- Applications
- .70 Class Aerobatic
