Dualsky 50E Tuning Combo with eco4120c 560kv Motor and 80A ESC
$259.95
SKU:
DSTC.5A.50E
Product Description
Overview

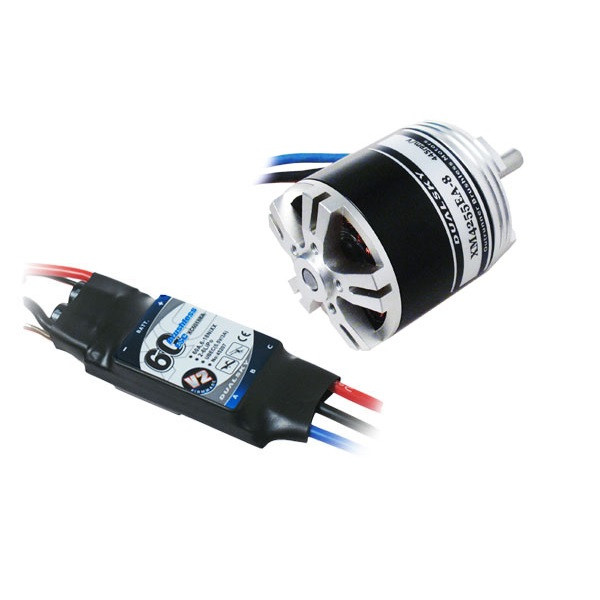

The Dualsky 50 Tuning Combo consists of a 445Kv XM4255EA-8 motor and a 60A XC6018BA ESC. It will suit .42 to .55-class RC aircraft.
Features
Product Information
The Dualsky 50 Tuning Combo consists of a 445Kv XM4255EA-8 motor and a 60A XC6018BA ESC. It will suit .42 to .55-class RC aircraft.
Specs
XM4255EA-8 Motor Specifications
- kV
- 445RPM/V
- Alias (Stator Diameter, Magnet Length)
- 3525
- Weight
- 250.3g
- Diameter
- 42mm
- Length
- 49mm
- Diameter of Shaft
- 6mm
- Mounting Holes Pitch
- 25/25mm
- Slots, Poles
- 12, 14
- Idle Current (Io) @10V
- 2.0A
- Resistance (Ri)
- 32mOhm
- Cruising Power [8 mins]
- 574W
- Bursts Current [15s]
- 47A
- Peak Power [15s]
- 1044W
- Recommended ESC
- XC6018BA
- Setup 1 (No. of Cells, Prop.)
- 5S, 15x8
- Setup 2 (No. of Cells, Prop.)
- 6S, 15x6
- Max. Weight of Sport Models
- 2.9kg
- Max. Weight of 3D Models
- 1.9kg
- Memo
- .46-.55 2-stroke up to .72 4-stroke
XC6018BA ESC Specifications
- Dimensions
- 75 x 30 x 14mm (L x W x D)
- Weight
- 63g
- Number of Cells (NiXX)
- NiXX 6-18, 7.2-21.6V
- Number of Cells (LiPo)
- LiPo 2-6, 7.4-22.2V
- Resistance (Ri) (Ohm)
- 0.0022
- Max Cont. Current
- 60A
- Max Cont. Output
- 1260W
- Max Burst Current
- 80A
- Max Burst Output
- 1632W
- BEC/Dissipative Power
- 5.5V/3A (Swiching)
- Programmable
- Throttle + ProgCARD V2
- Input Wires
- 120mm, 14AWG, DC3
- Output Wires
- 75mm, 14AWG, DB4
- Signal Wire
- 300MM JR
