Dualsky 180 Micro Tuning Combo with 2303C 1800kv Motor and 12A Lite ESC
$59.95
SKU:
DSTC.2A.180
Product Description

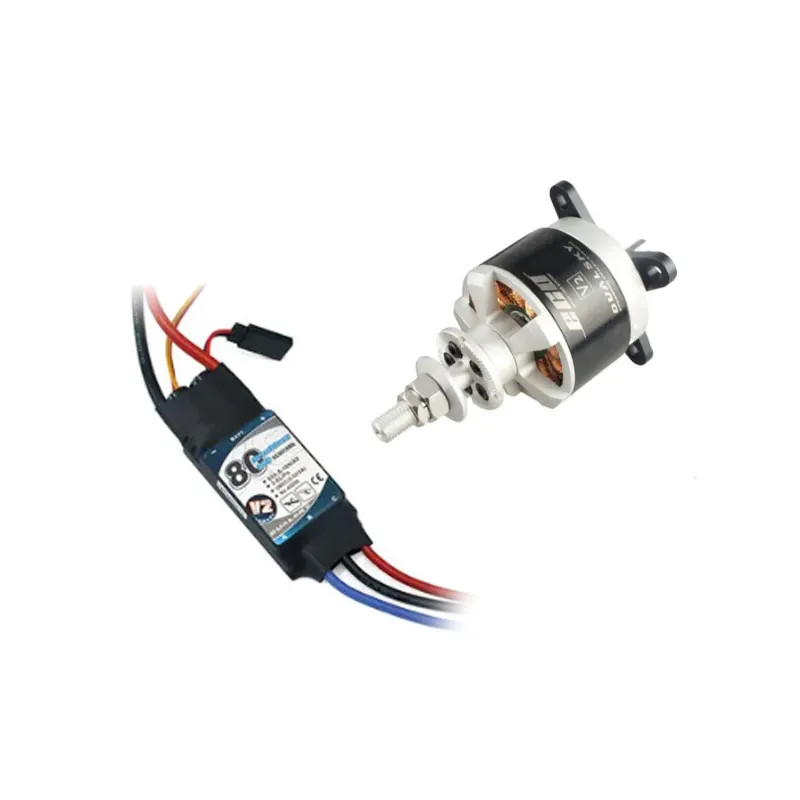

This Dualsky 180 Micro Tuning Combo consists of the Dualsky ECO 2303C 1800kv motor and XC1210BA ESC.
Specs
Motor Specifications
- Model
- ECO 2203C
- RPM/V (KV)
- 1800
- Shaft Diameter
- 3.175 mm
- Mounting Holes Pitch
- 32 mm
- Weight
- 19 g
- Resistance (Ri) [mOhm]
- 276
- Idle Current (Io) @10V
- 0.4
- No. of cells
- 2 - 3
- Max. Efficiency Current
- 6 A
- Max. Burst Current
- 10 A
- Max. Power
- 80 W
- Input Connectors
- GC2.0
- Recommended ESC
- XC-7-Lite
- Prop Range
- 2S: PT 9x3E, 8x4.7SF
3S: 5x3E, 5.1x4.5E - App. Class
- 100 - 150 g airplanes, e.g. F3P or indoor freestyle
ESC Specifications
- ESC No
- XC1210BA
- Dimensions
- 32 x 24.5 x 6 mm
- Weight
- 12 g
- Number of cells
- NiXX 5 - 10, 6 - 12V
LiPo 2 - 3, 7.4 - 11.1V - Resistance (Ri) [Ohm]
- 0.0121
- Max. Continuous Current
- 12 A
- Max. Continuous Output
- 126 W
- Max. Burst Current
- 18 A
- Max Burst Output
- 184 W
- BEC / Dissipative Power
- 5V/1A (1.5, Linear)
- Programmable
- Throttle + ProgCARD + USB Link
- Input Wires
- 100 mm 18 AWG, JST
- Output Wires
- 65 mm, 18AWG, DB3/DB2
- Signal Wire
- 180 mm JR
- Description
- Micro
- Applications
- 400 Class Sports
