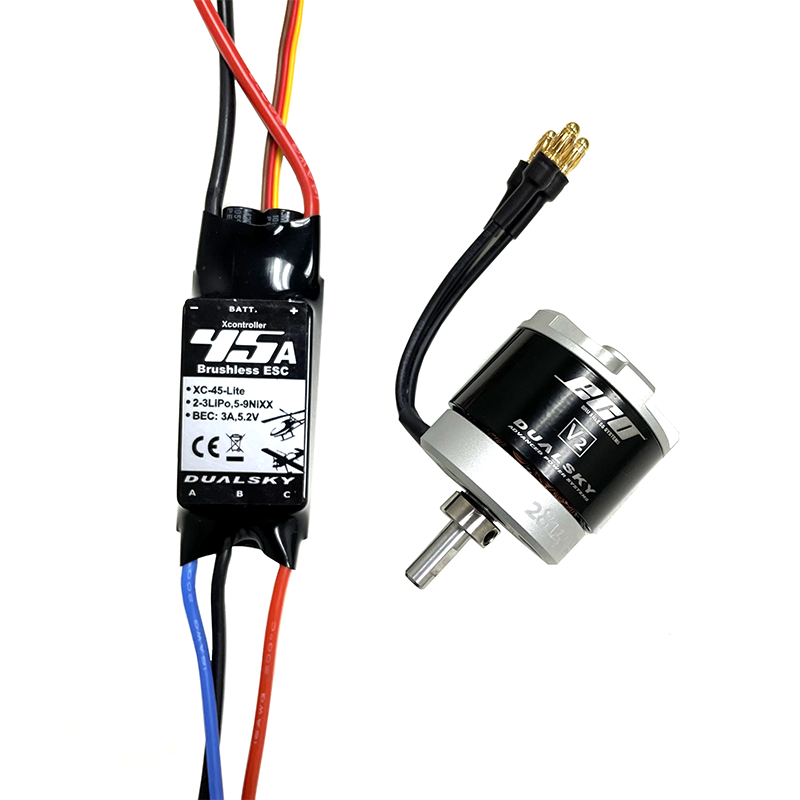

Dualsky 15E Tuning Combo with 2814C 970kv Motor and 45A Lite ESC
$99.95
SKU:
DSTC.3A.15E
Product Description
Overview
The Dualsky 15E tuning combo consists of a 990Kv motor and a 45A ESC. It will suit .10-.15 class RC planes or helicopters.
Features
Product Information
The Dualsky 15E tuning combo consists of a 990Kv motor and a 45A ESC. It will suit .10-.15 class RC planes or helicopters.
Specs
XM3536CA-8 Motor Specification:
- KV
- 990RPM/V
- Stator Diameter
- 28
- Magnet Length
- 14
- Shaft Diameter
- 4
- Mounting Holes Pitch
- 19/25
- Weight
- 103g
- Resistance (Ri)
- 46mOhm
- Idle Current (Io) @10V
- 1.27A
- No.of Cells (LiPo)
- 2-3
- Max. Efficiency Current
- 21A
- Max. Burst Current (15s)
- 32A
- Max. Power (15s)
- 350W
- Input Connectors
- DB3
- Recommended ESC
- XC3012BA
- Prop. Range
- 10x5, 13x6
XC-45-Lite ESC Specification:
- Dimensions
- 67x 25x 7mm (L x W x D)
- Weight
- 38g (with wires)
- Number of Cell
- NiXX 5-9 cell, 6-10.8V LiPo 2-3s, 7.4-11.1V
- Resistance(Ri)(Ohm)
- 0.0026
- Max Cont. Current & Max Cont.Output
- 45A, 500W
- Max Burst Current & Max Burst Output
- 60A, 666W
- BEC / Dissipative Power
- 5.2V/3A (Linear)
- Programmable
- Throttle + ProgCARD V2
- Signal Wire
- 300MM JR
