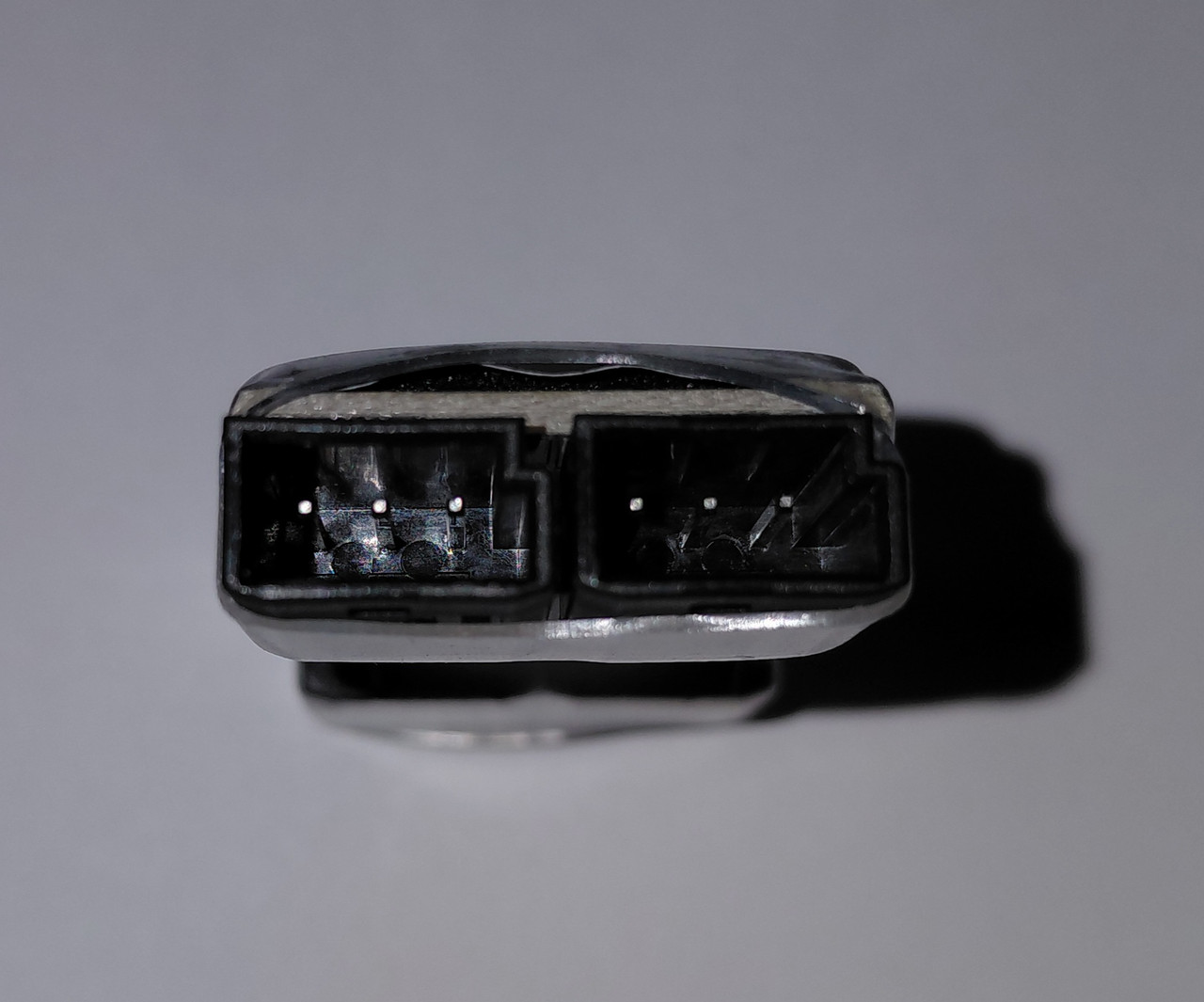

BATT SHARE

INCLUDES

From Receiver Batteries

2 X JR INPUTS

To Receiver

2 X JR OUTPUTS

With the Booma RC Dual Battery Isolator you can connect 2 batteries knowing that if one battery fails it will be isolated form supplying power. This will leave the good battery available to operate your model.

 Booma RC Dual Battery Isolator is designed to work with the Booma RC Intelliswitch and Wallaby Switch and will work with all products within specified rating.

Specification:
- 2 independent 10A isolating circuits.
- Deigned for Battery chemistry
    LifeP04 (2 - 3 cells),
    LiPo Life (2 - 3 cells),
    Lion (2 - 3 cells).
    Nicd (5 - 10 cells).
    NiMH (5 - 10 cells).
- Maximum input voltage 13 volts.
- Minimum input voltage 1.5 volts
- Max continuous current:
    2 x 10 Amp continuous (20 Amp)
- Weight 10 grams.
- Length 30 mm x width 16 mm
- Operating Temperature - 40 to 80 degrees Celsius
