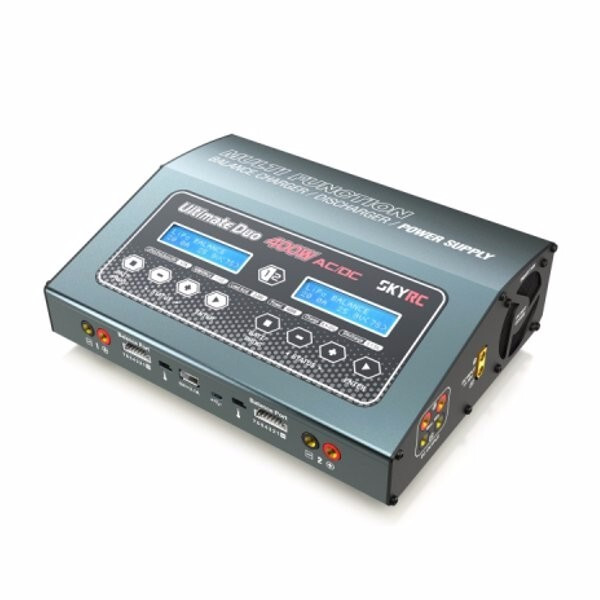

D400 Ultimate Duo 400W Balance Charger / Discharger / Power Supply Support 1-7S Lithium Batteries
SKYRC D400 is a twin-channel charger with two independent circuits which can charge two different kinds of batteries simultaneously. It also supports power distribution in both AC and DC modes to get max charging power to shorten charging time. Moreover, it is not just a charger, but also a power supply which gives maximum 150 watts DC power on channel 2 for users to power their DC devices.
What’s more, the synchronization mode is available, in which users could perform synchronous settings for charging same batteries simultaneously to offer time-saving benefits
Twin-channel Charger
SkyRC D400 allows you to charge 2 batteries (same or different) simultaneously and independently.
PC Software for Data Analysis and Firmware Upgrade
Charge Master can start/stop charging process, and view real-time graphs of current, voltage, capacity and monitor single cell voltage.
Input Voltage
AC 100-240V/DC 11-18V
Charge Circuit Power
400W
Discharge Circuit Power
36W
Charger Current Range
0.1-20A
Discharge Circuit Power
0.1-5A
Current Drian for Balancing Port
Max 500mA/cell
Trickle Charging Current
50mA-300mA & OFF
DC Power Supply Output
6-15V/Max.10A
LiPo/LiFe/Lilon/LiHV Battery Cell Count
1-7S
NiMH/NiCd Battery Cell Count
1-18S
Size
Length : 258mm
Width : 194mm
Height : 82.5mm
