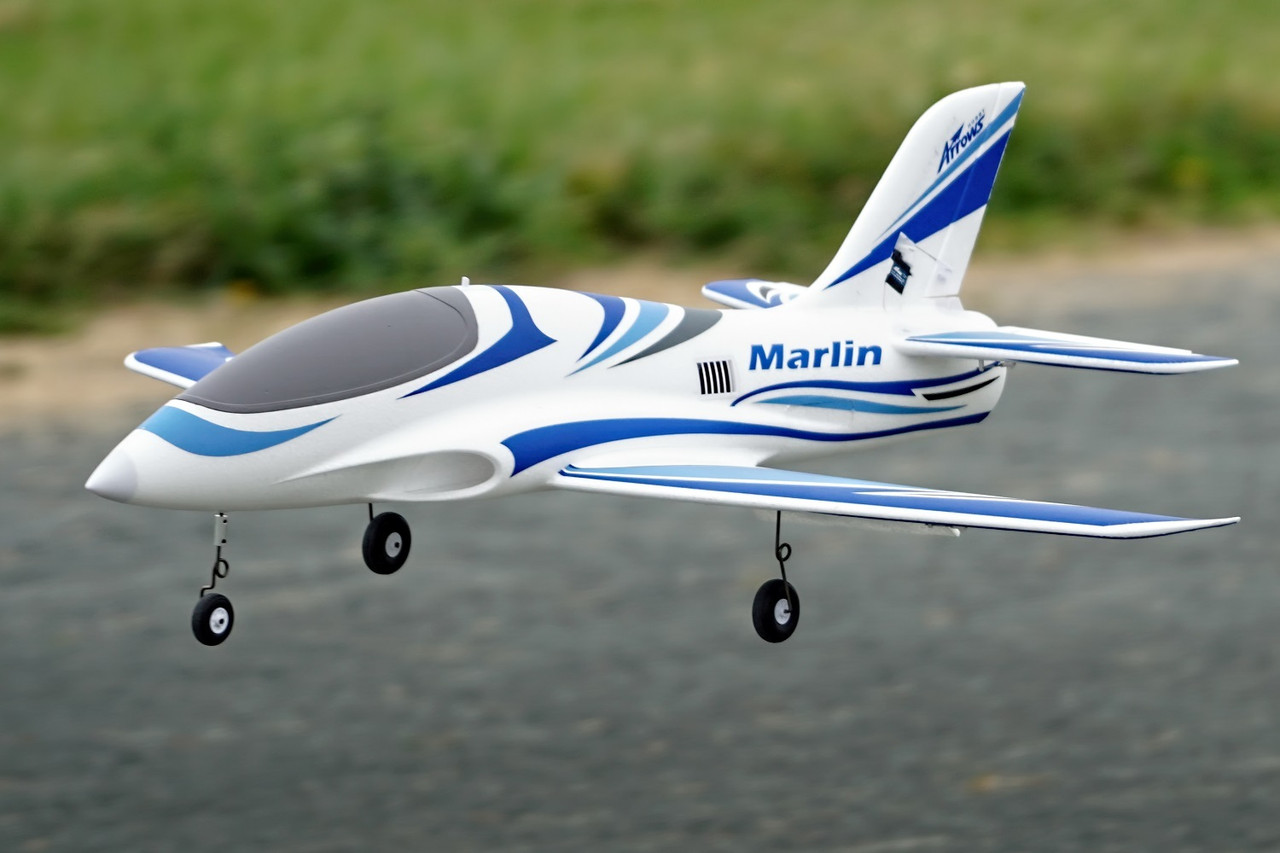

Something different! The Arrows Marlin 64mm EDF is an ALL NEW design with the beginner to intermediate pilot in mind. This plane has a more robust fixed landing gear than most, to handle bumpy landings. More importantly it is the only plane in its class to have flaps to shorten takeoff, and to make approaches and landings more like those of a high wing trainer. The 3150kV motor combined with a 40 Amp ESC, and a powerful 64mm 11 blade EDF, ensure plenty of power for takeoff and maneuvers. The fan sounds like a real turbine.
This plane basically has eight screws and some servo connections to complete assembly. No glue is necessary, and because we use 8 servos we are not running a lot of control rods around. Even the nose wheel has it's own servo. Flap and aileron connections are made with ball linkages, for greater strength at higher speeds. A latch type canopy makes in flight canopy loss a thing of the past.
If you are looking for a first EDF to try, or are looking to move up to a EDF without spending a bundle, this plane is for you.
Wingspan | 900mm (35.43in) |
Length | 995mm (39.17in) |
CG (Center of Gravity) | 72-75mm from leading edge |
Power System | 3150kV - 2840 size |
Electronic Speed Control | 40A |
Propeller / EDF | EDF 64mm 11 blade |
Servos | 9 gram servo x 7, 9 gram 54 degree servo x 1 |
Landing Gear | Robust fixed |
Required Battery | 4S 2200-3300mAh 35C XT60 Connector |
Required Radio | 6 Channel transmitter and receiver required |
Ailerons | Yes, separate servo for each |
Elevator | Yes |
Rudder | Yes |
Flaps | Yes |
Lights | No |
Hinge Type | Fabric |
Material | EPO Foam |
Skill Level | Beginner to intermediate |
Build Time | 10 minutes |
Recommended Environment | Park, School, or AMA field |
(AH009P)
