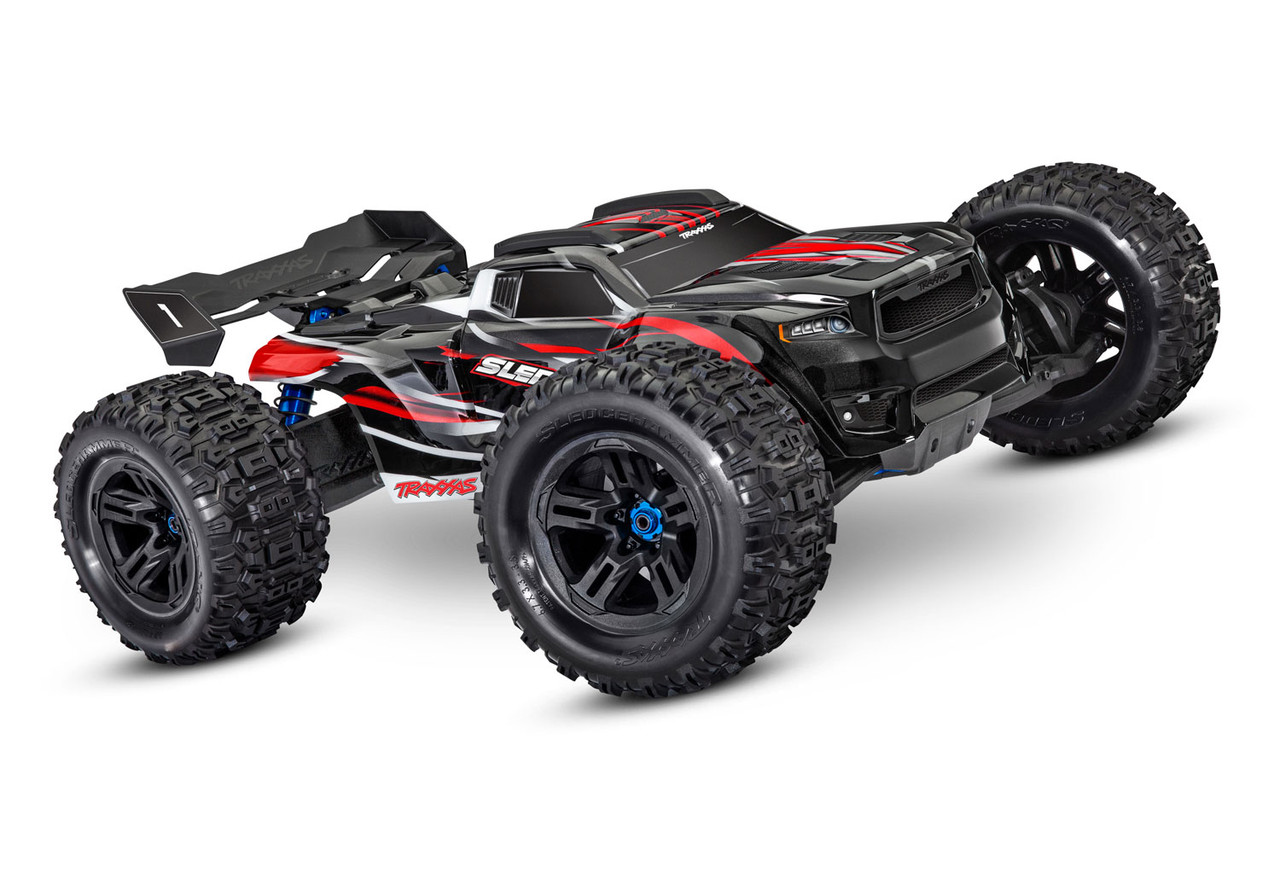

TRAXXAS Sledge® 1/8 scale 4WD brushless monster truck ( RED )

$1,499.95
SKU:
95076-4RED

Sorry but this item is currently unavailable.

Please check back at a later stage.


Product Description

Sledge Specs Side
Sledge Specs Front
Length (including wing): 23.78 inches (604mm)
Front Track: 18.10 inches (459mm)
Rear Track: 18.10 inches (459mm)
Ground Clearance: 1.95 inches (50mm)
Weight (no battery): 12.74 pounds (5.77kgs)
Height (overall): 8.43 inches (214mm)
Wheelbase: 15.10 inches (384mm)
Shock Length (front): 5.12 inches (128mm)
Shock Length (rear): 5.67 inches (144mm)
Tire Diameter: 6.7 x 3.3 inches (170mm x 84mm)
Wheel Diameter: 3.8 inches (97mm)
Speed Control: Velineon® VXL-6s (#3485)
Motor (electric): Velineon® 2000kV Brushless
Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
Differential Type: Sealed, hardened steel bevel, limited slip

  • VXL-6s Waterproof Electronic Speed Control
    • 6s LiPo compatible
    • Integrated cooling fan
    • Real-time telemetry via Traxxas Link
    • 3-LED status indicators
    • Powered accessory ports
    • 10-gauge silicone wire
    • Patented Traxxas High-Current Connectors
  • Velineon® 2000kV Brushless Motor
    • 4-pole 2000kV brushless motor
    • 5mm output shaft
    • Finned can for better heat dissipation
    • Aluminum motor cradle mount
      • Supports entire motor
      • Reduces flex for longer gear life
  • Up to 70+ mph with Two 3s LiPo Batteries
  • Traxxas Stability Management® (TSM)
    • Improves straight line acceleration and braking on low-traction surfaces
    • Never dulls throttle or slows the truck
    • Adjusts from off to 100% assistance from the transmitter
  • TQi 2.4GHz High Output Radio System
    • TQi 2-channel transmitter
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
    • Programmable multi-function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
    • 5-channel micro receiver (#6533) with fail-safe security
    • Patented waterproof receiver box with easy-access plug
  • Drivetrain
    • Heavy-duty steel driveshafts
    • Large 8mm steel stub axles
    • Steel dogbone center driveline
    • Protective rubber boots on differential inputs
  • Transmission
    • Mod-1 pinion and spur gears
    • Fixed gear mesh system
    • Torque-Biasing Center Drive
  • Differentials
    • Heavy-duty sealed 4-gear design
    • Large scale steel ring and pinion gears
    • Oversize 8mm output shafts
    • Steel drive cups
    • Easy-access bulkheads
  • Oil-filled GT-Maxx® Shocks
    • Longer rear shocks for more travel
    • Machined aluminum threaded body
    • Extra-large bore and capacity
    • Large-diameter damper shaft
    • Lower cartridge with dual X-rings
    • Height-adjustable spring retainer
    • Lower spring perches bolted on
  • Suspension
    • Performance-optimized geometry
    • Ultra-tough composite arms
      • Made from our strongest cold-weather material
      • Molded insert for clean look
      • Rear rock deflectors
      • Press-in hinge pins to reduce play
    • Oversize molded toe and camber links
    • Heavy-duty C-hubs
      • Stronger than conventional designs
      • Require no adjusments
    • Multiple mounting points for suspension tuning
  • Chassis
    • 3.2mm ribbed aluminum chassis
      • Formed edges for improved strength
    • Thick T-Bar for added rigidity
      • Stronger than round bars
    • High-strength buttressing on shock towers
    • Ultra-thick 5mm 6061-T6 aluminum shock towers
    • Rugged locking battery compartment with quick-release door
    • Low-CG design for improved handling
    • Interlocking components for tight tolerances
    • Tough front and rear bumpers double as skid plates
    • Hidden wire management for clean appearance
  • ProGraphix® Body
    • Clipless body mounting system
    • Rigid internal frame
    • Molded body reinforcements for tear-through protection
    • Protective roof skids
    • Rugged high-downforce rear wing
  • Wheels and Tires
    • Huge 6.7” Sledgehammer® all-terrain tires
      • TSM-rated construction resists ballooning
    • Tough 3.8” black wheels
    • Splined 17mm aluminum axle hubs
  • Steering
    • High-throw bellcrank steering design
    • Heavy-duty servo saver with aluminum posts
    • Metal servo horn
    • Powerful #2275 metal gear servo
      • 347 oz-in torque
      • Fully waterproof
  • Sealed Ball Bearings
  • Hex hardware with Rust-Resistant Black Oxide Coating
  • Maxx Battery & Speed Chart
